Product Description

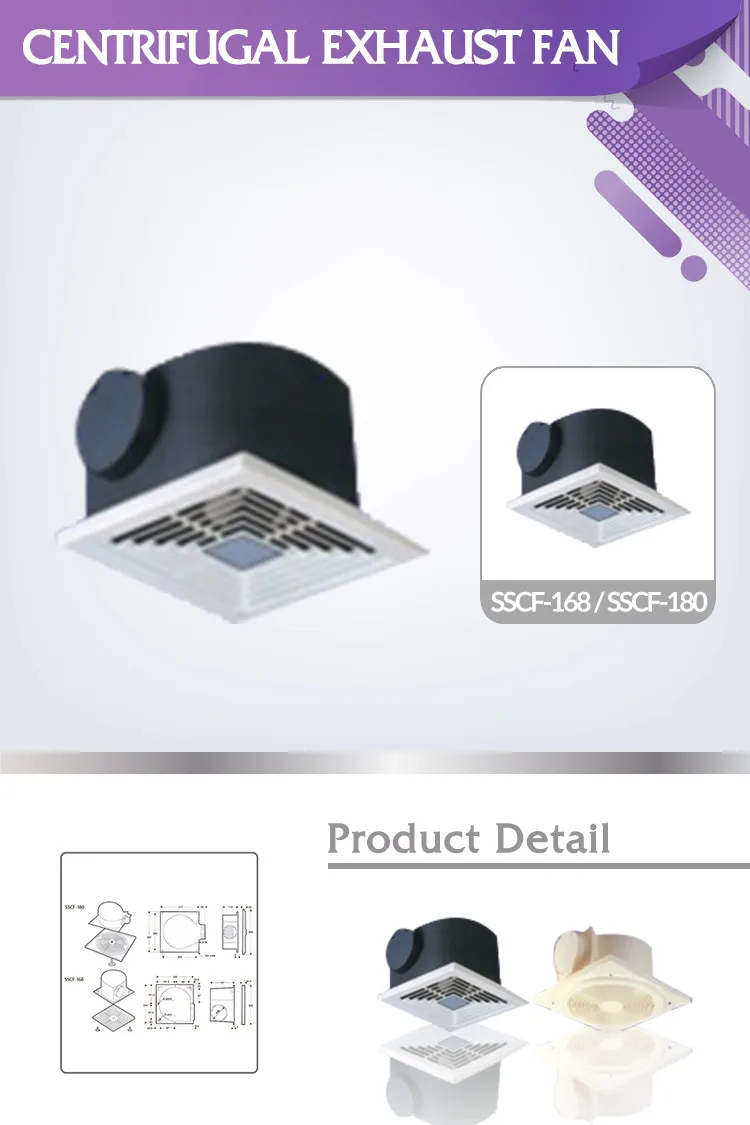

Low power consumption SSCF-180 fashionable square ceiling centrifugal fan

Usage: Toilet or bathroom ventilation

Quick Details

  • Type: Centrifugal Fan
  • Electric Current Type: AC
  • Blade Material: Plastic
  • Mounting: Ceiling Fan
  • Place of Origin: Taiwan
  • Brand Name: Shin Si
  • Model Number: SSCF-180
  • Power: 35/40 W
  • Voltage: 115/230 V
  • Air Volume: 3.8/4.0 m3/min
  • Speed: 1100/1150 RPM
  • Certification: CE, CSA, GS, UL
  • After-sales Service Provided: No overseas service provided
  • Model name: CENTRIFUGAL EXHAUST FAN
  • Usage: Toilet or bathroom ventilation
  • Blade: 7 Dia.
  • Frequency: 50/60 Hz
  • Static pressure: 12/16 mm/W.G
  • Sound level: 49/50 dB(A)
  • Net weight: 2.4 kg
  • Gross weight: 10.3 kg

Packaging & Delivery

Packaging Details 4SETS/EXPORT CARTON/2.7CUFT , 20’CONTAINER = 1480 SETS / 40’HQ CONTIANER = 3552 SETS
Delivery Time 3-4 WEEKS

Special Features

Model Name
SSCF-180
Blade
7 Dia.
Voltage
115V
230V
Frequency
50Hz
60Hz
Power
35W
40W
Capacity
3.8 m3/min
4.0 m3/min
Speed
1100 RPM
1150 RPM
Static Pressure
12 mm/W.G
16 mm/W.G
Sound Level
49 dB(A)
50 dB(A)
Net Weight
2.4 kgs
Gross Weight
10.3 kgs
Cuft/CTN
4 Sets / 2.7′
20ft Cntrn
1481 sets
40Hq Cntrn
3552 sets
